Guest Blog: HIV Vaccines

You remember we had a competition, end of last year?  Well, the runner-up of same – Dorian McIlroy – has claimed his prize by writing a guest blog.  Clayton, that means you have to do two…?!

And Dorian writes on a subject close to our collective hearts, here in the Subunit Vaccine Group at Univ of CT: HIV vaccines, and how T-cell vaccines in particular may not be down and out after all.  I note that he refers to two published papers that were topics of talks at the recent AIDS Vaccine Conference here at UCT recently, which was covered here in ViroBlogy: always useful to have your material on the verge of being published when you talk…!

HIV vaccine candidates – The return of the recombinants…

Towards the end of 2007 Merck interrupted a large scale clinical trial of a candidate HIV vaccine based on recombinant adenovirus. As well as showing no protective effect, there was a worrying tendency for vaccinees with serum antibodies to the vector – serotype 5 adenovirus (Ad5) – to show greater susceptibility to HIV infection than volunteers receiving placebo injection. This looked like the end of the road for adenovirus-based vaccines, and maybe even for any strategy based on recombinant viruses. However, two recent papers indicate that there may yet be considerable mileage in this approach.

The first, from Dan Barouch’s team in Boston, shows how recombinant adenoviruses could be made considerably more effective. One of the big drawbacks with these recombinant viruses is that repeated injections do not give an immunological booster effect. That is, even though the immune response to a single injection can be strong, there is not much increase after a second, or a third injection of the same recombinant virus. This happens because as well as inducing an immune response to the target antigen (SIV gag, for example), the recombinant virus vector induces an immune response against itself. So when the recombinant virus is injected a second time, it is neutralized by the antibodies induced by the first injection.

The Barouch paper shows that it is possible to get round this problem by using two recombinant adenoviruses with different serotypes, so that the second injection can provide an effective boost. Giving macaques two injections of SIV gag-recombinant Ad5 gave a good response to the first injection, but no boost. Using an SIV-gag recombinant Ad26 for the first injection, then using the Ad5 recombinant for the second, gave a 9-fold higher T-cell response measured by IFNgELISPOT than two doses of Ad5 recombinant.

So far, so good – but does this immune response translate to protection from infection?

Well, yes and no. After intravenous challenge with highly pathogenic SIVmac251, all animals in all groups were infected, so none of the animals were completely resistant to SIV. Peak viral load in the group vaccinated with Ad26/Ad5 was 1.4 log lower than in the control group, and about a log lower in the group vaccinated with Ad5/Ad5. Set-point viral load was also much lower in the Ad26/Ad5 group compared to the control group, so replication of the challenge virus was controlled to some extent in the animals that received the most effective vaccination protocol.

Overall there are two messages here. The first is that it is possible to do much better than the strategy that failed in the Merck trial, that employed three injections of Ad5 recombinant viruses. That’s the good news. The bad news is that even with a much more effective vaccination, in terms of the T-cell response, the protection against infection, although significant, was relatively modest. This means that vaccine candidates based on T-cell immunity alone are never going to work……. or does it?

Which brings me to the second paper, from Louis Picker’s group in Oregon. The big novelty here is the generation of recombinant rhesus macaque cytomegalovirus (CMV) expressing SIV proteins, that are tested as vaccine candidates in the SIV Mac model.

Why on earth would anyone want to try out CMV, when other recombinant (adeno- and pox-) viruses have been so disappointing? The difference is in the lifestyles of the viruses involved. Both adeno and poxviruses provoke acute infections, whereas CMV both in humans and apparently, in macaques, causes a lifelong infection, in which active viral replication is held in check largely by a robust T-cell response. When the immune response is compromised, as in AIDS patients, or transplant recipients receiving immunosuppressive drugs, CMV infection often reactivates, which can cause serious illness, and even be life-threatening. Because of the persistent nature of both the virus and the cellular immune response, a high-level of effector-memory T-cells (TEM, not to be confused with Transmission Electron Microscopy) specific for CMV are maintained in CMV+ individuals (who probably make up about half of the world population, in case you were wondering).

TEM have two interesting characteristics from a HIV vaccine point of view. Firstly, they are armed and dangerous. If they see their cognate viral antigen, they can either kill the infected cell, or secrete cytokines. Secondly, they migrate to mucosal sites, rather than lymph nodes, so they are in the right place to stop HIV infection after sexual transmission. More sedate central-memory T-cells (TCM), on the other hand, hang around the blood and lymph nodes, and do not immediately have anti-viral effector functions. Their response to HIV infection might be too late to be any use, as the first rounds of productive viral infection occur in the mucosa, not the draining lymph nodes.

Picker’s group points out that most memory T-cells that remain months after a recombinant adenovirus vaccination are TCM, not TEM, and set out to test the hypothesis that using a recombinant virus (CMV) that naturally gives a strong TEM response might be more effective in protecting against SIV infection at a mucosal site. So they generated recombinant, replication competent macaque CMV carrying genes for SIV gag, a Rev-Tat-Nef fusion protein, and an intracellular form of Env. Cells infected with these viruses expressed high levels of the recombinant proteins, and animals inoculated subcutaneously with them became persistently infected – just like wild-type CMV infection.  As predicted, high levels of SIV-specific TEM were found in the blood, and in broncho-alveolar lavage (which is a relatively convenient way to obtain mucosal T-cells). More than one year after vaccination, animals were submitted to a mucosal challenge (intrarectal, if you really want to know) with SIVmac239, which is the same strain as that used to produce the recombinant CMV.

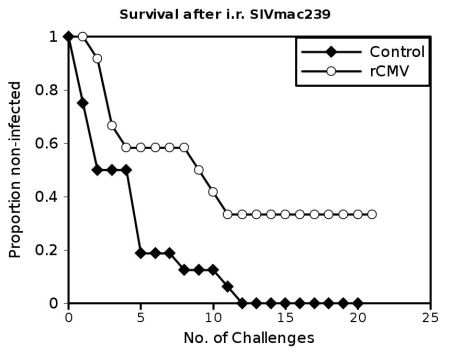

The details of the viral challenge are interesting. In order to simulate a real infection, a low viral dose was used, and this means that not all control animals get infected. So the challenge was repeated weekly until infection (detected by plasma viral load) was observed. I have turned the data from the paper into Kaplan-Meier curves, and used the log-rank test to compare the two groups (BTW: if Louis Picker is reading this, that’s the test you should have used). With p=0.03, survival without infection was significantly prolonged by vaccination, and 4 out of 12 vaccinated macaques were resistant to mucosal challenge. These four animals did not have a latent or cryptic infection, as no SIV DNA or RNA was detectable in CD4 T-cells in blood or lymph nodes, and CD8+ T-cell depletion did not result in viral rebound.

recombinantviruses_032009_html_48846d22This was without any neutralizing antibodies, so for the first time a T-cell vaccination strategy has been shown to confer protection against infection (not just better control of viral load after infection, as with recombinant adenoviruses) in at least some vaccinated animals. Although 33% protection is not enough, at least things are going in the right direction.

So what’s the catch? Well, there are two really. Firstly the SIV sequences in the vaccine and challenge virus were identical. The vaccination strategy may not be so effective against a heterologous challenge, that would be more representative of the real-world. Secondly, the vaccination provokes a persistent infection with a genetically-modified virus, that (unlike other recombinant viruses and gene therapy vectors) remains infectious, so it’s hard to see how this kind of vaccine could be licensed for clinical trials.

Nevertheless, I think this paper is telling us – at last – what kind of T-cell response vaccines should be aiming to induce. Now all we need to do is solve the neutralizing antibody problem, and we’ll really be cooking with charcoal….

Dorian McIlroy

Tags: , ,

5 Responses to “Guest Blog: HIV Vaccines”

  1. Clayton Says:


    If ~ half of the world’s population is infected with CMV and these individuals have high-levels of effector-memory T-cells specific to the virus, won’t you run into the same problems faced by the Adenovirus boosters when trying to use a recombinant CMV vector? i.e. the recombinant CMV vector induces an immune response against itself in individuals previously infected with CMV. This would greatly reduce the number of mucosal cells that the vector could get into . . . assuming that there is crossreactivity among the recombinant CMV and the previously infecting CMV.


    • Ed Rybicki Says:

      My take on this would be…yes, why not?? This is why I am suspicious of ALL human viruses used as vaccine vectors; immune enhancement / skewing of the immune response to inappropriate mode (eg: Th2 vs Th1) could all be complications of background immunity / prior exposure.

      Subunit vaccines. With adjuvants.

  2. Dorian Says:

    Well apparently, the presence of natural rhesus CMV infection in some of the macaques in the study didn’t prevent them from becoming chronically infected by the vaccine virus, and developing an immune response to the SIV proteins.

    Also, I believe the authors mentioned that CMV infection in humans doesn’t prevent super-infection (although I’m not so sure about this), and this was their explanation why recombinant CMV might be effective despite the presence of pre-existing immunity to the vector.

    However, I don’t think recombinant CMV could be used clinically. Because the efficacy of the vaccine seems to depend on persistent viral replication, I don’t see how it would be possible to remove the risk of letting a recombinant virus loose on the world (since the recombinants might also be transmitted from one person to another) while retaining the vaccine’s efficacy. This is a bit like the problems encountered with attenuated SIV.


  3. Dorian Says:

    Oh, and thanks for the comment. I was beginning to think that I’d need to use a pseudo and start up a conversation with myself……

  4. DMcILROY Says:

    After checking with a CMV colleague, it appears that CMV-superinfection does occur, at least in the context of bone-marrow transplant. CMV+ recipients can become infected by the CMV strain from a CMV+ bone marrow donor.
    No idea whether super-infection in immunocompetent individuals has been documented, though.
