Silencing is golden!

An excellent journal club article by Mark Whitehead:

Pavan Kumar, Sagar Subhash Pandit, Ian T. Baldwin. Tobacco Rattle Virus Vector: A Rapid and Transient Means of Silencing Manduca sexta Genes by Plant Mediated RNA Interference. PLoS ONE, 2012; 7 (2): e31347 DOI: 10.1371/journal.pone.0031347

Specific Insect Gene Silencing achieved by ingestion of plant produced dsRNA, via a transient viral vector platform.

RNAi- mediated gene silencing is an endogenous mechanism and has been utilised in reverse genetics in a number of organisms and it has the potential to be used as a tool for pest control.

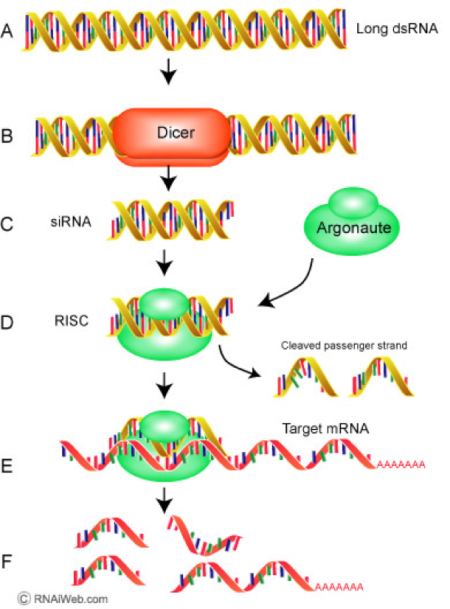

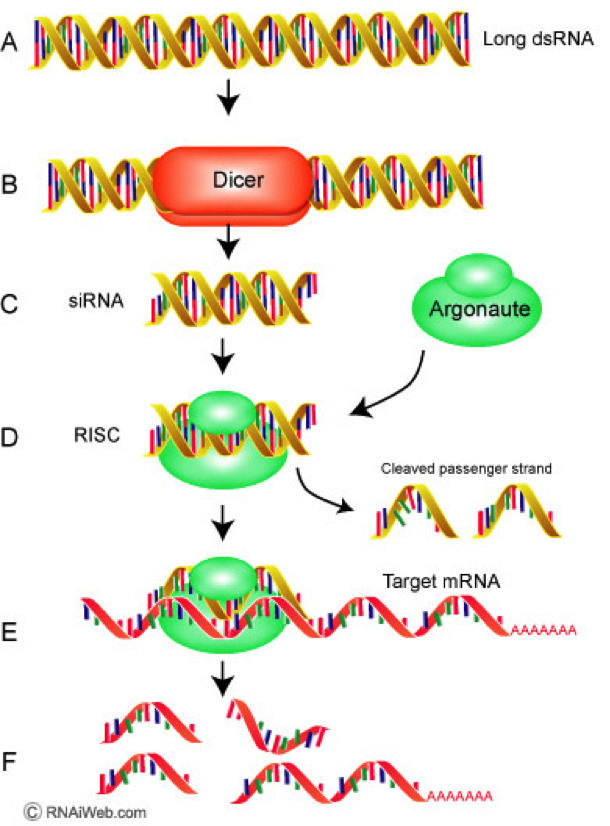

The diagram below gives a good summary on the standard RNAi process. Briefly,  dsRNA produced in the nucleus is transported to the cytoplasm; alternatively, exogenous dsRNA can be taken up by cells with the help of a cell surface protein. In the cytoplasm, dsRNA is cleaved by RNaseIII type enzymes (dicers) to produce approximately 22 bp fragments, called small interfering RNAs (siRNAs). One strand of the siRNA (guide strand) is incorporated into the RNA-induced silencing complex (RISC) with the perfectly complementary site in a target mRNA to form a guide strand-target mRNA duplex. The target mRNA is then sliced by the Argonaute protein of RISC.

(With permission from

Plants have RNA-dependant RNA polymerases (RdRPs) that accentuate the process as they extend the bound guide strand to create more dsRNA that can then re-enter the RNAi cycle. dsRNA delivered to insects by various routes has been seen to induce RNAi, however insects lack RdRPs and therefore require a large constant supply of siRNAs for sustained gene silencing. Herbivorous insects feeding on stably transformed transgenic host plants have been seen to take up the produced dsRNA molecules into their gut cells, causing post transcriptional gene silencing. Generation of these stable transgenic plant lines is a time consuming task, while transient plant transformation offers a faster and more versatile approach, allowing for a number of dsRNA products to be created as a quicker screening method.

Larvae of the tobacco hornworm Manduca sexta contain genes that encode for nicotine-catabolising enzymes, rendering them resistant to the toxic nicotine alkaloid produced by their host plant Nicotiana attenuata. It was previously seen that some cytochrome P450 (CYP) genes were up-regulated in the larval gut in response to nicotine ingestion (CYP4M1 and CYP4M3 genes) and CYP6B46 was down-regulated when fed on nicotine suppressed plants.

In this paper the tobacco rattle virus (TRV) was used to transiently produce dsRNAs in Nicotiana attenuata – this approach was termed plant-virus based dsRNA producing system (VDPS) – in comparison to stably transformed plants – termed plant mediated RNAi (PMRi) for the silencing of these lepidopteran genes.

They initially checked to see if M. sexta could indeed take up the dsRNA and cause PMRi. It was observed that when the larvae were fed on a transgenic plant expressing dsRNA for the CYP6B46 gene, there was CYP6B46 smRNA found in the midgut and a reduction in the CYP6B46 transcript levels was observed, effectively causing silencing of the gene. It was very specific as the transcript levels of a similar gene (CYP6B45 – 80% similarity) was not affected. The VDPS was tested and compared to the PMRi for the same target and produced comparable silencing, that was also highly specific and did not cause any “off-target” effects.

Since the VDPS is a more rapid technique and was seen to be comparable to the PMRi, it was therefore used to screen the other gene targets – CYP4M1 and CYP4M3. Again the smRNAs for each were seen to be present in the midgut of the larvae when fed on the plants and the transcript levels were reduced with high specificity. The reduction of the CYP4M3 transcription levels also caused larval growth to decrease, indicating that this gene may a central role in nicotine tolerance.

The length of the dsRNA is known to have an effect on RNAi experiments and it would be ideal if the lengths were standardised. It is possible that the lepidopteran dicers that function in extremely alkaline environments of the midgut are specialized and possess different dicing properties than the plant dicers; consequently, insect-dicer diced smRNA might be more effective than the plant-dicer diced smRNA in gene silencing in insects.

Plant Dicers (DCLs) are involved in the biogenesis of smRNA by cleaving longer dsRNA. Four different types of DCLs are reported in higher plants. Their function has been found to overlap in plants, suggesting that one DCL can contribute to and/or compensate for the function of the others. Hence, more than one DCL might be involved in processing long dsRNA.

To address this they then silenced different combinations of the four N. attenuata’s Dicer genes in the transgenic PMRi lines producing CYP6B46 dsRNA. Long CYP6B46 transcript levels in the plants was found to be increased more than 50 fold when the DCL 1,3,4 or DCL 2,3,4 were co-silenced. These then lead to an enhanced silencing effect in the larvae midgut, indicating that there could be a preference for insect diced smRNAs or simply that the larger dsRNAs were more stable and the higher concentration enhanced the silencing effect. It also suggests that the plant and insect RNAi machinery respond differently to the dsRNA.

In conclusion PMRi can be a specific and robust system of gene silencing in M. sexta. PMRi would be the method of choice for crop protection in countries which allow the growth of transgenic crops. While retaining all the virtues of PMRi, VDPS promises to be a rapid and high throughput alternative, suitable for ecological research.

This article has been a short review of the journal article stated below. For more in depth information on this research, follow the link and download the freely available journal article.
